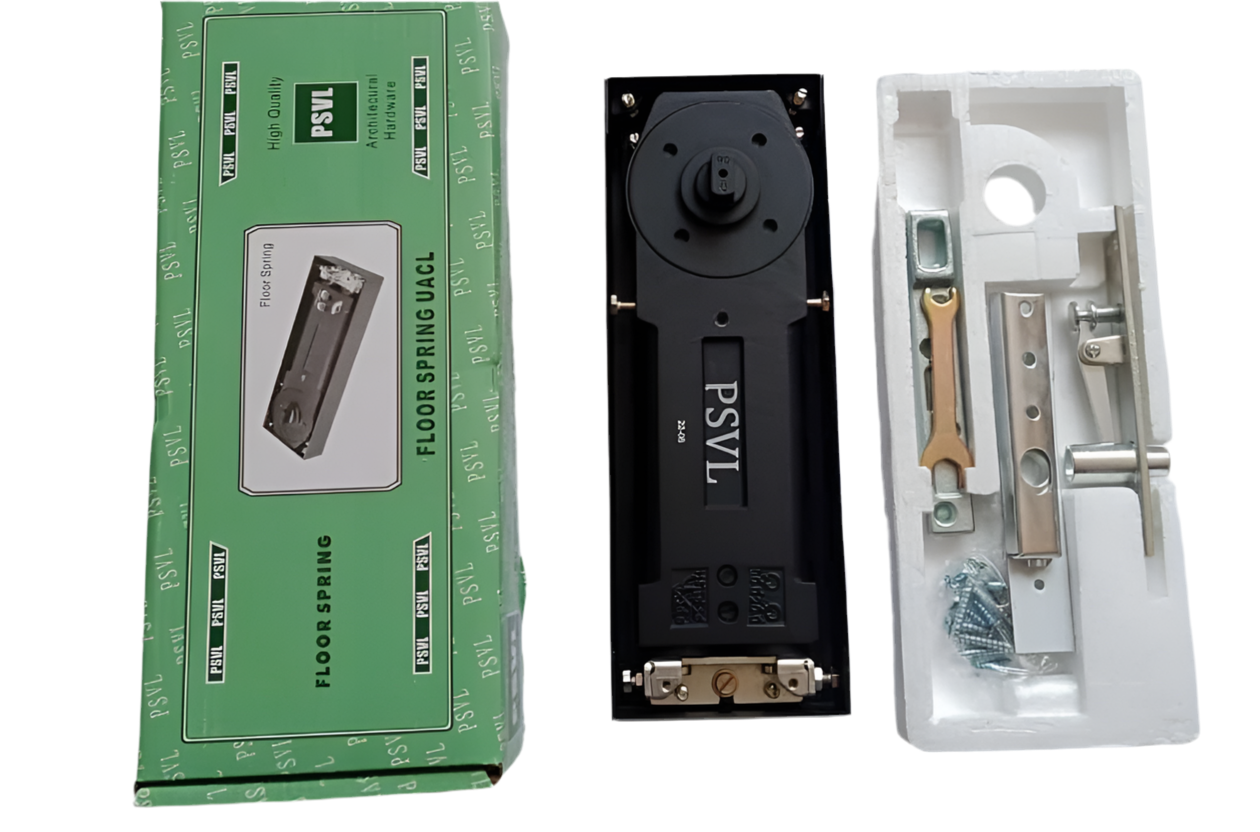

PSVL Floor Hinge(300kg)
PSVL Floor Hinge(300kg)
Regular price
Rs.19,500.00 PKR
Regular price
Sale price
Rs.19,500.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Made in China
A. 2,000,000cycles tested by Intertek
B. ANSI/BHMA 156.4 Grade 1 Certification
C. Germany design same as BTS80, popular all over the world
D. Door weight upto 300KG
E. Applicable for glass door, wooden door, aluminum door and frame door
F. Germany type spindle for optional
| Engine Cylinder | Single |
| Max Door With | 1400mm |
| Max Door Weight | 300kg |
| Max Open Degree | 180° |
| Stop Device | 90° & 130° |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 341mm*78mm*60mm |
